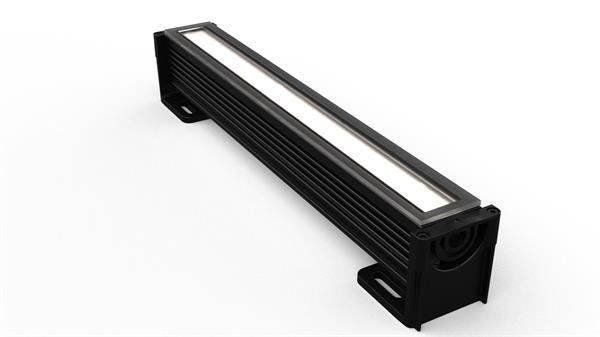

Product Image

HYLINE300 LED

Exterior High Output Linear Low Voltage Static White LED Surface Mount

By Hydrel

    Buy America(n) Option Available
  • Overview
  • Specifications
This product is a direct replacement for the former Winona Winline 309W. The HYLINE HLF309 is a outdoor high performance linear LED luminaire suitable for the illumination and grazing of walls, ceilings and other planes in wet locations. The HLF309 operates on 24VAC and can be dimmed with commonly available low voltage magnetic dimming equipment. A wide range of remote transformers are available in 120V and 277V primary.
Read More
Read Less
Size 1FT, 2FT, 3FT, 4FT, 18 IN, 30 IN
Light Source LED - Static
Lumens 950 LM, 1125 LM, 1200 LM, 1400 LM, 1500 LM, 1700 LM, 1800 LM, 1900 LM, 2300 LM, 2400 LM, 2800 LM, 2900 LM, 3000 LM, 3300 LM, 3400 LM, 3500 LM, 3600 LM, 3800 LM, 3900 LM, 4000 LM, 4200 LM, 4600 LM, 4800 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80
Product Type Linear
Compliance Listing BAA
Environmental Listing Wet Location
Regulatory Listing ETL
Dimming Protocol 0-10V, Magnetic Low Voltage
Light Distribution Medium Flood, Spot, Wide Flood
Voltage Rating 024
Mounting Type Surface
Color Black, White
Series HLF309
