Hydrel
Hydrel

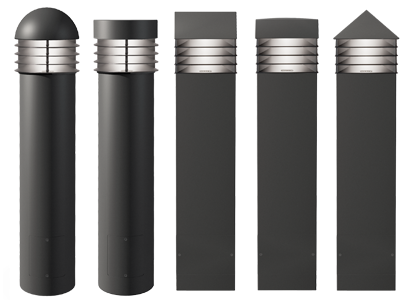

3100C LED Louvered Bollard

High-Output LED Pathway Bollard
    Buy America(n) Option AvailableBuy America(n) Option Available
  • Overview
  • Specifications
Read More
Read Less
Light Source LED - Static
Lumens 1500 LM
CCT / LED Color 2000 K, 3000 K, 4000 K, 5000 K, Amber Limited Wavelength
CRI 80
Product Type Bollard
Compliance Listing BAA and BABA
Environmental Listing IP65, Wet Location
Regulatory Listing CSA, CSAus, NOM
Dimming Protocol 0-10V, Forward Phase
Light Distribution IES Type IV, IES Type V
Fixture Wattage 84, 86
Voltage Rating 120, 120-277, 277, 347
Mounting Type Anchor Based
Color Beige, Black, Bronze, Brown, Gray, Green, Silver, White
Series 3110C, 3120C, 3130C, 3140C, 3150C

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet 3100C_WL_LED 3100C Wild Life Series COB Bollard 3/11/2024 View
    Spec Sheet 3110C Series COB Bollard 3110C Series COB Bollard 3/11/2024 View
    Spec Sheet 3120C Series COB Bollard 3120C Series COB Bollard 3/11/2024 View
    Spec Sheet 3130C Series COB Bollard 3130C Series COB Bollard 3/11/2024 View
    Spec Sheet 3140C Series COB Bollard 3140C Series COB Bollard 3/11/2024 View
    Spec Sheet 3150C Series COB Bollard 3150C Series COB Bollard 3/11/2024 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 3100 Series COB Installation Instructions 3100C COB Bollard 6/30/2014 View
    Installation Instructions 3100_3100C Bollard Anchor Bolt Template.pdf 3100C Bollard Anchor Bolt Template 6/24/2016 View
    Installation Instructions ABL General Warnings, Form No. 503.204 ABL General Warnings, Form No. 503.204 11/8/2012 View
    Installation Instructions ABL LED General Warnings, Form No. 503.203 ABL LED General Warnings, Form No. 503.203 11/8/2012 View

  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet 3100_SparePartsList 3100C Bollard Spare Parts Sheet 12/3/2024 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Brochures Airport Terminal Lighting Solutions Airport Terminal Lighting Solutions, Hydrel 11/26/2024 View
