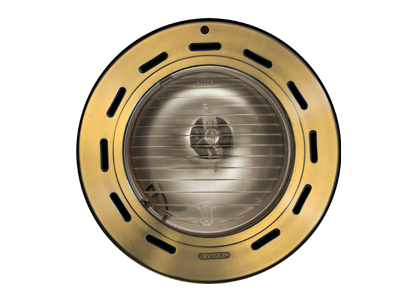

Product Image
9100
M9700C LED

9100

Performance In-Grade

By Hydrel

    Buy America(n)
  • Overview
  • Specifications
The 9100 Series HID flush mounted Up-lights represent the state-of-the-art in flush light construction. These multi-purpose modular units are designed for flush mounting in planting areas or in concrete, and are used for illuminating building facades, walls, trees, and similar applications. The lamp module and power modules are factory sealed, thermally protected, and connected by submersible rated connectors.
Read More
Read Less
Size 12 IN
Light Source HID - Ceramic Metal Halide, HID - High Pressure Sodium, Incandescent
Product Type In-Grade
Compliance Listing BAA
Environmental Listing IP68, Wet Location
Regulatory Listing CE, CSA, UL
Light Distribution Flood, Medium Flood, Narrow Flood, Spot, Wall Wash, Wide Flood
Fixture Wattage 100, 150, 35, 50, 70
Voltage Rating 120, 120-277, 208, 220, 230, 240, 277, 347
Mounting Type In-grade
Series 9100

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET 9100 HID 9100 Series HID 150 Watt Max. In-Grade Luminaire 1/12/2022 View
    SPEC SHEET 9100 Incandescent 9100 Series Incandescent 150 Watt Max. In-Grade Luminaire 1/12/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 9000/9100 Installation Instructions 9100 In-Grade View
    Installation Instructions Ingrade_Internal_Accessories.pdf M9000 In-Grade Internal Accessories View
    Installation Instructions Lamp Support Ring Installation Lamp Support Ring Installation View

  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Installation Instructions 9100 relamping instructions 9100 relamping instructions View
    Replacement Part Installation Instructions Polymeric Lamp Support Removal 9100 Polymeric Lamp Support Removal View
    Replacement Part Installation Instructions Re-lamping Instructions M9000/9000 Series Re-lamping Instructions M9000/9000 Series View
    Replacement Part Spec Sheet 9100 HSL MODULES .pdf 9100 series ballast modules (HSL) View
    Replacement Part Spec Sheet 9100 Series Accessory Specifications 9000 Series Accessory Specifications View
    Replacement Part Spec Sheet ACL - 9100 Series Spare Parts List ACL Lamp Module - 9100 Series Spare Parts List View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide Hydrel Wall Wash App Guide - M9700C LED.pdf Hydrel Wall Wash Application Guide - M9700C LED View
