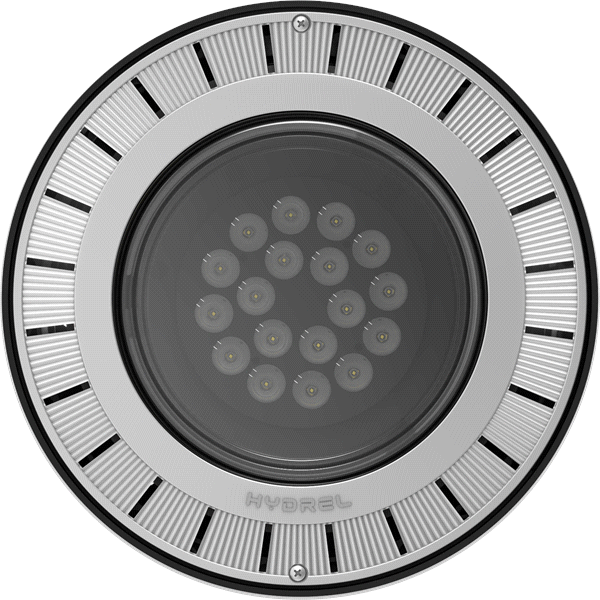

Product Image

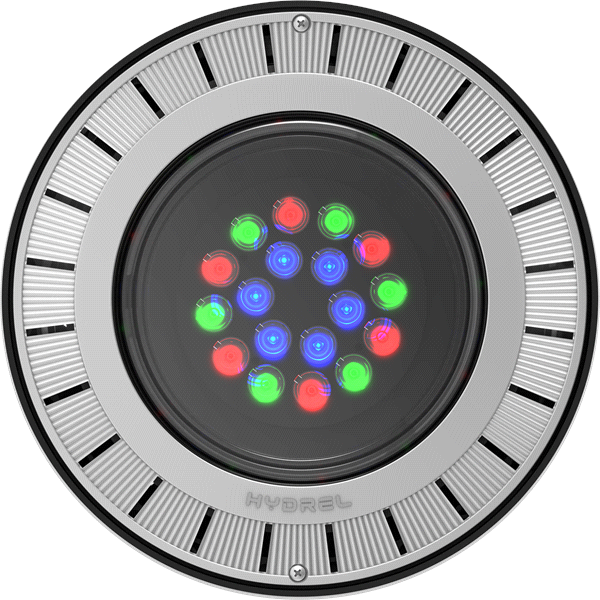

Hydrel M9700 RGB Ingrade Lights
M9700 RGB Ingrade
M9700C LED

M9700 RGB IN-GRADE

RGB Modular Ingrade Fixture, Outdoor In-ground Luminaire, Multi-Purpose

By Hydrel

    Color ChangingBuy America(n) Option Available
  • Overview
  • Specifications
The M9700 RGB modular in-grade is a multi-purpose LED luminaire designed for flush mounting in a variety of substrates or materials.


Use the M9700 RGB architectural in-grade to up light architectural, and landscape features with dynamic saturated color. The outdoor in-grade consists of a factory sealed, thermally protected lamp module. The power module is in a secured Rough-In Section (RIS) which includes channeled convective cooling, an integral junction box, and door assembly.

  • Customize RGB color combinations to suit any lighting design application.
  • Optical and mechanical aiming with an optional double lens
  • Optimal efficiency through photometric improvements
  • DMX Controller, RDM available
  • Flow-Thru technology
  • Aim-Lock technology
  • Modular Design
  • IK08 with IK10 option available
Read More
Read Less
Size 12 IN
Light Source LED - Dynamic, LED - Static
Lumens 1100 LM
CCT / LED Color RGB
Product Type In-Grade
Compliance Listing BAA
Environmental Listing IP68, Wet Location
Regulatory Listing CSA, CSAus, UL
Light Distribution Flood, Horizontal Flood, Horizontal Spot, Medium Flood, Narrow Flood, Narrow Spot, Very Wide Flood, Wide Flood
Fixture Wattage 19
Voltage Rating 120-277
Mounting Type In-grade
Color Beige, Black, Bronze, Brown, Gray, Green, Silver, White
Series M9710, M9720, M9730, M9740

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET M9700_LED_RGB.pdf LED Color Changing In-Grade Luminaire 2/1/2023 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions M9700 RGB Installation.pdf M9700 RGB Color Changing In-Grade View

  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Installation Instructions INS_M9000_Switch between double and single.pdf How to switch between double and single lensed finishing sections for M9000 In-grades View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures M9000_Ingrade Brochure Hydrel M9000 Architectural Ingrade Brochure 3/30/2023 View
