See how Ridge translates design choices into visible outcomes across various applications. Scroll to explore Grazing, Flood Lighting, and 1 ft Resolution Control. Each interactive slide progresses from a neutral black and white render to an architectural view with spec overlays, to the final lighting effect; helping you fine tune coverage and contrast with confidence on your next projects. Looking for a Wall Washing layout? Download the Guide, here.

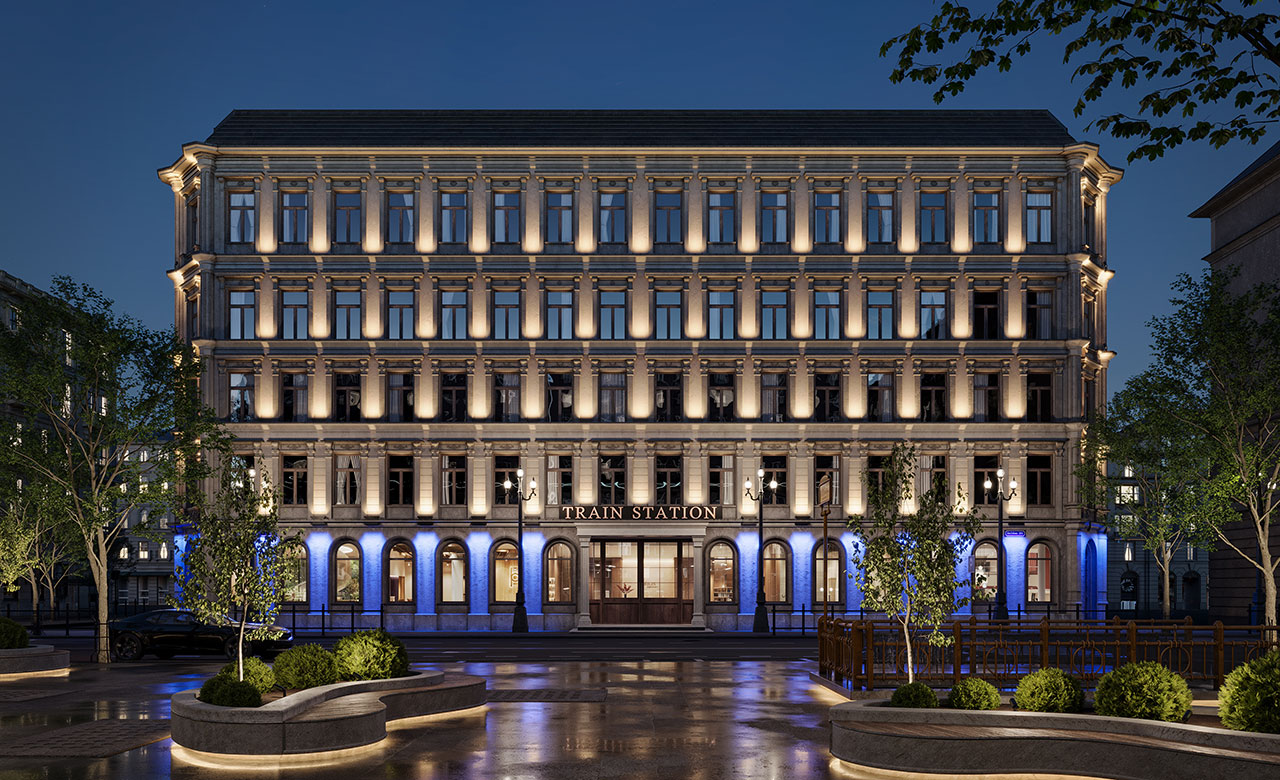

Result
Spec
Grazing
Grazing rakes light across a surface to emphasize texture, rhythm, and detail. Ridge’s linear family scales in modular sections and continuous runs to align with façade bays and joints, while precise optics (9×9°, 10×60°, and 15×30°) let you tune contrast and reach. The result is a smooth vertical gradient with clean starts that minimize base hot spots and scalloping.
Flood Lighting
Ridge excels at delivering precise beam control, high lumen output and consistent illumination at scale. Modular runs and tuned optics let you set coverage and contrast to reveal form without overpowering the surroundings.
1‑ft Resolution Control
With optional 1‑ft resolution control, Ridge enables per‑foot addressing for precise, pixel‑mapped effects along straight or curved runs. Combined with true continuous runs and RGBW Quad Tech color mixing, it delivers seamless blends without striations or color separation in grazing or wall‑wash applications.
