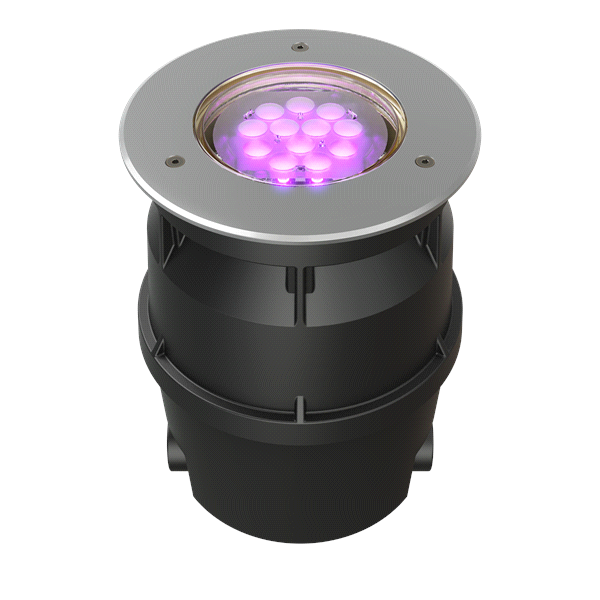

Tierra IGF6 RGBW In-grade

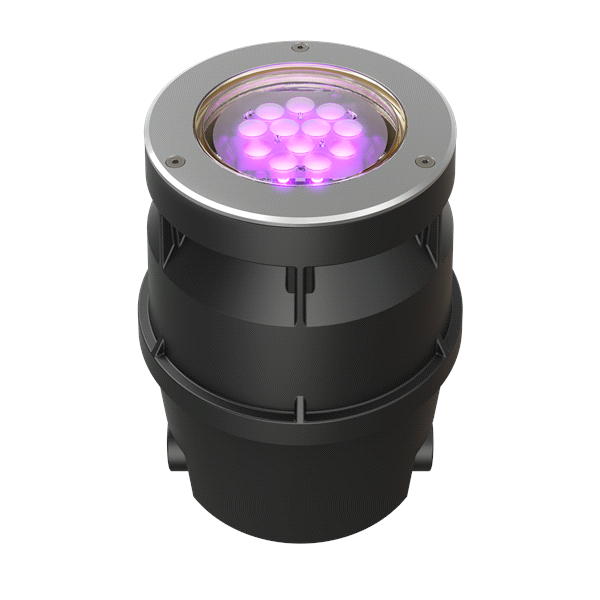

Tierra IGF6 Quad Tech RGBW Ingrade, Outdoor In-ground Luminaire, Multi-Purpose
    Color ChangingBuy America(n) Option AvailableBuy America(n) Option Available
  • Overview
  • Specifications
Experience a powerful architectural in-grade with the Tierra IGF In-grade Series. The luminaire offers higher delivered lumens, more color temperatures, and outstanding water ingress protection in a compact form.

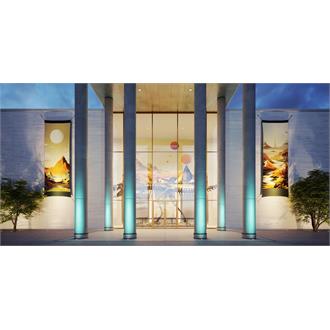

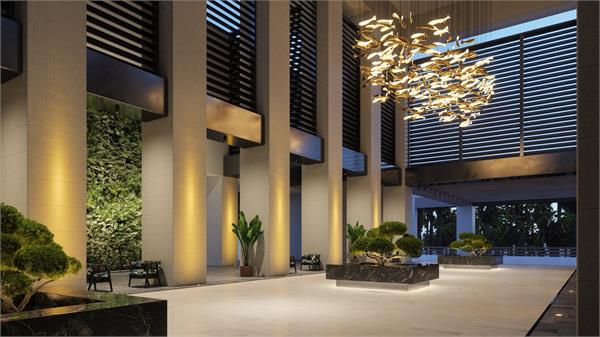

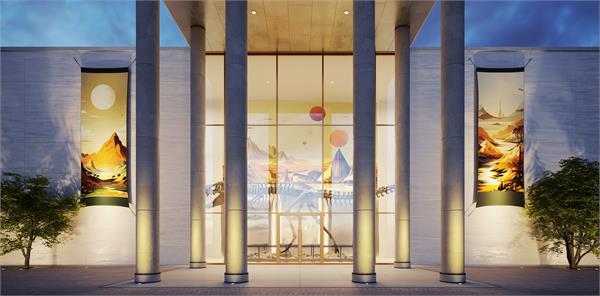

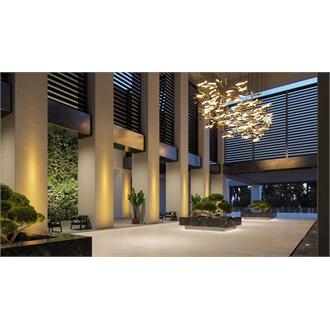

With a diameter of 6.38", the fixture offers a minimalist look and can be used indoors or outdoors. It highlights columns, trees, and unique architectural features.
  • Optimal beam control with 8 distributions: 7°, 15°, 30°, 60°, 90°, Wall Wash, 30°x70° & 70°x30°
  • Up to 1100 delivered lumens
  • Color temperatures: RGBW3, RGBW4, RGBWA
  • Make it close and personal with Quad Tech RGBW. Select soft pastels and bold, saturated colors with confidence, as Quad Tech RGBW prevents striations and color separation in wall grazing or wall-washing applications.
  • Modular design for easy installation, driver replacement, and light source updates as technology advances
  • Flow-Thru technology for superior resistance against the intrusion of dust or liquids
  • Mechanical tilt of 0°, 5°, or 10° for additional custom and versatile design options

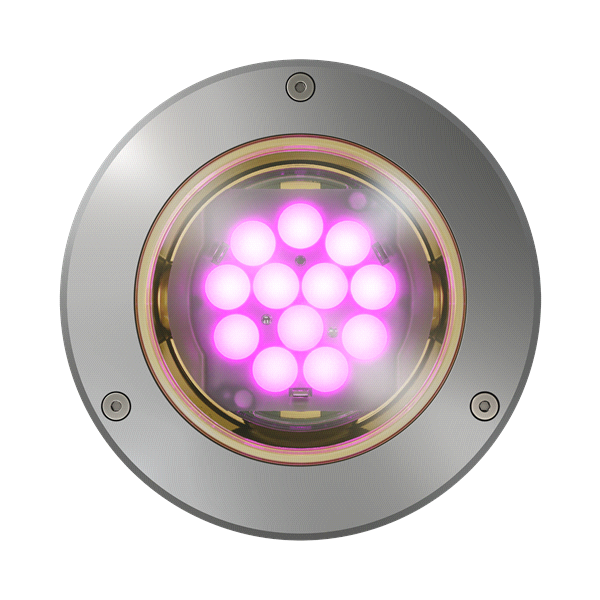

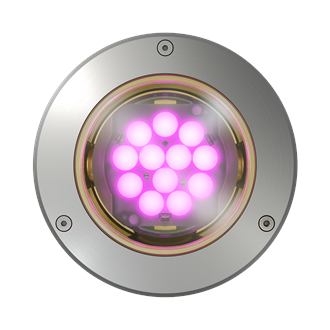

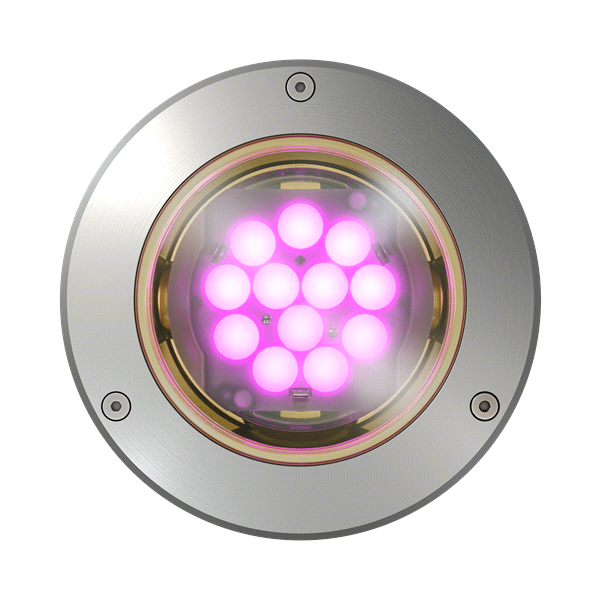

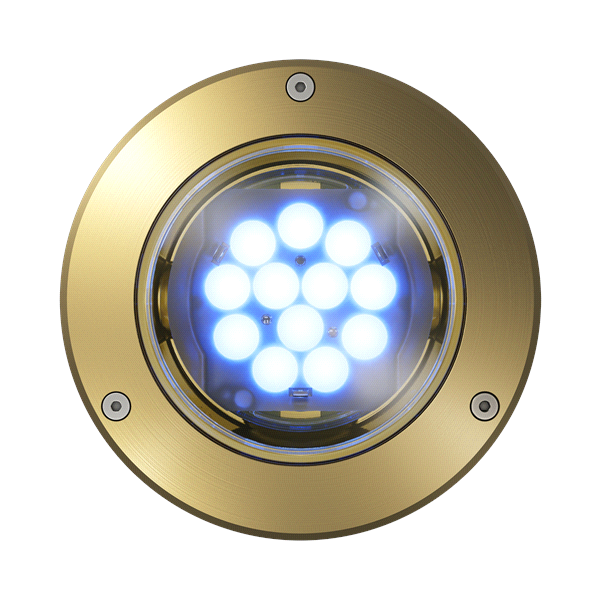

  • 5 door trims available
  • DMX Control
  • IP68
  • Internal Honeycomb Louver or Internal Source Shield are available
  • Available in a range of finishes and with zinc undercoat
  • MVOLT
Read More
Read Less
Size 6 IN, 7 IN
Light Source LED - Dynamic
Lumens 900 LM, 950 LM, 1050 LM
CCT / LED Color RGBA, RGBW
Product Type In-Grade
Compliance Listing BAA and BABA
Environmental Listing IP68
Regulatory Listing cCSAus
Dimming Protocol DMX
Light Distribution Asymmetric, Medium Flood, Spot, Very Wide Flood, Wall Wash, Wide Flood
Fixture Wattage 24.5
Voltage Rating 120-277
Mounting Type In-grade
Color Beige, Black, Bronze, Green, Silver, White
Series IGF6

Read More Read Less
