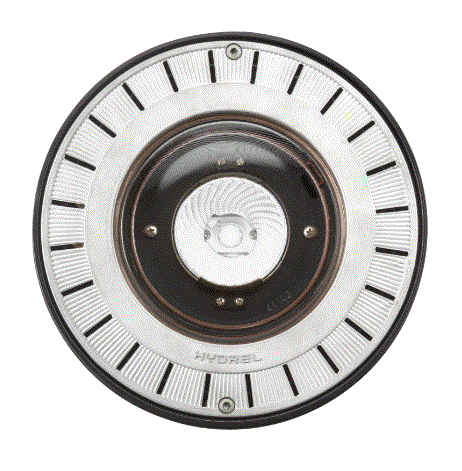

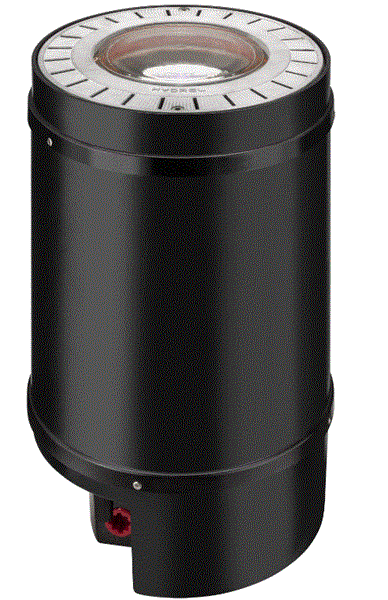

M9400C LED

LED Flow-Through In-Grade 9"

By Hydrel

    Buy America(n) Option Available
  • Overview
  • Specifications
The Hydrel M9400C is a powerful in-grade solution that delivers unmatched high-quality illumination. M9400C LED delivers consistent, uniform color from luminaire to luminaire, with minimal color shift and depreciation over the life of the product. M9400C provides improved optical and mechanical aiming with an optional double lens, and its modular flow-thru design ensures peak performance and extends the life of the product.
  • Factory sealed LED lamp module and encapsulated power module
  • Optical and mechanical aiming with an optional double lens
  • Optimal efficiency through photometric improvements
  • Color temperatures 2700K, 3000K, 3500K, 4000K, 5000K Amber Limited Wavelength
  • In-line (Dims to Dark) & 0-10V Dimming (Dims to Dark)
  • Seven distributions including very narrow spot and wall wash
  • Flow Thru Technology
  • IK10 Option available
Read More
Read Less
Size 9 IN
Light Source LED - Static
Lumens 240 LM, 250 LM, 350 LM, 1000 LM, 1300 LM, 1900 LM, 2400 LM, 2500 LM, 3300 LM, 3900 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Amber Limited Wavelength
CRI 80
Product Type In-Grade
Compliance Listing BAA
Environmental Listing IP68, Wet Location
Regulatory Listing CSA, CSAus, NOM
Dimming Protocol 0-10V, Forward Phase
Light Distribution Flood, Medium Flood, Narrow Flood, Narrow Spot, Very Narrow Spot, Wall Wash, Wide Flood
Fixture Wattage 10, 14, 20, 28, 31
Voltage Rating 120-277
Mounting Type In-grade
Color Beige, Black, Bronze, Brown, Gray, Green, Silver, White
Series M9410C, M9420C, M9430C, M9440C

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET M9400C_LED.pdf In-Grade Luminaire 4/18/2023 View
    SPEC SHEET M9400C_LED_RETROFIT.pdf Retrofit LED components for use in 9000 series housing and M9400 HID series housing 4/12/2023 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet Spectral Data Report_Hydrel_M9400C_80CRI_30K.pdf Spectral Data Report M9400C 80CRI 30K 11/9/2022 View
    Spectral Data Sheet Spectral Data Report_Hydrel_M9400C_80CRI_40K.pdf Spectral Data Report M9400C 80CRI 40K 11/9/2022 View

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions ABL General Warnings, Form No. 503.204 ABL General Warnings, Form No. 503.204 View
    Installation Instructions ABL LED General Warnings, Form No. 503.203 ABL LED General Warnings, Form No. 503.203 View
    Installation Instructions Installation Instructions - M9400C.pdf M9400C In-Grade 4/8/2021 View

  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Installation Instructions INS_M9000_Switch between double and single.pdf How to switch between double and single lensed finishing sections for M9000 In-grades View
    Replacement Part Spec Sheet PARTS MACSC.pdf Replacement parts for M9400C MACSC LED module 6/26/2019 View
    Replacement Part Spec Sheet PARTS MHSLC94.pdf Replacement Parts for M9400C LED driver module 6/26/2019 View
    Replacement Part Spec Sheet PARTS-MFSC94DOUBLE LENS.pdf Replacement parts for M9400C double lens finishing section 7/14/2022 View
    Replacement Part Spec Sheet PARTS-MFSC94SINGLE LENS.pdf Replacement parts for M9400C single lens finishing section 6/26/2019 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide Flagpole Lighting Guide Hydrel Flagpole Lighting Guide by Hydrel. For the love of flags and their stories! Get the updated guide. 8/25/2023 View
    Brochures Hospitality Architectural Lighting Brochure Hospitality Architectural Lighting Brochure 9/20/2023 View
    Brochures M9000 Architectural Ingrade Series Brochure M9000 Architectural Ingrade Series, inground lighting 9/5/2023 View
    FAQ M9400C FAQ M9400C Frequently Asked Questions 9/20/2019 View
    Sell Sheet Sell Sheet M9400C Sell Sheet 7/24/2019 View
